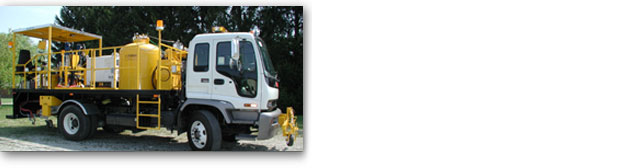

RoadRunner - Airless System

Features:

   Superior heavy-duty construction makes for a long service life.
   Clean and simple design ensures ease of operation and maintenance.
   High Quality Components minimize overall maintenance.
   Large inventory of replacement parts stocked at our factor and we offer same day shipment.
   Our outstanding customer service professionals backed by our knowledgeable technical
     support staff ensures that all your needs are met and your questions answered after the sale.

Specifications:



   Chevy W-5500 Cab over truck, 17,590# GVW with 5360# front axle, 12,980# rear axle, 5.1 liter
     190 HP Isuzu motor with automatic transmission, 132.5” wheelbase, engine shut-down system,
     air conditioning.
   Bumper mounted pointer with hydraulic lift
   Hydraulic Centerline carriage with two (2) Graco paint guns and two (2) Graco bead guns with
     adjustable deflectors
   Hydraulic Edgeline carriage with one (1) Graco paint gun and one (1) Graco bead gun with an
     adjustable deflector
   Four (4) drum holders with fold down railings
   1500 pound pressure bead tank
   12 cfm compressor
   3 x 2.3 gpm stainless steel paint pumps
   18 HP Kohler engine
   12 gallon hydraulic reservoir with 12v cooler
   Three (3) gun programmable skipline controller with a built-in linear foot counters
   Easy-Read wire and hose schematics for simple troubleshooting



Options:

   Paint and bead stencil gun
   Gallon meter kit (3)
   Camera pointer system
   Remote digital speed indicator
   Extra strobe lights
   Two (2) 110 gallon paint tote
   Loading pump
   Cone platform
   Arrow board with automatic lift
   Shade roof over operator
   Air ride seats for rear operators
   Conspicuous tape

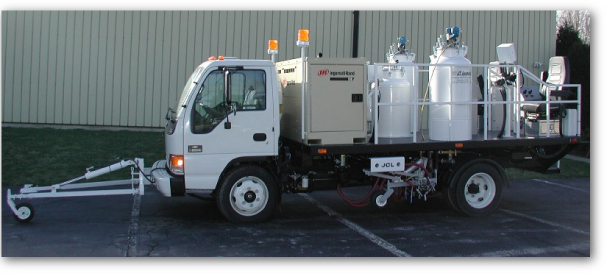

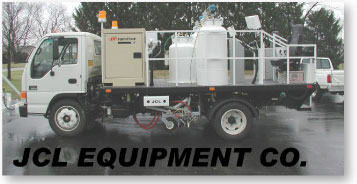

RoadRunner - Airspray System

Features:

   Superior heavy-duty construction makes for a long service life.
   Clean and simple design ensures ease of operation and maintenance.
   High Quality Components minimize overall maintenance.
   Large inventory of replacement parts stocked at our factor and we offer same day shipment.
   Our outstanding customer service professionals backed by our knowledgeable technical
     support staff ensures that all your needs are met and your questions answered after the sale.

Specifications:



   Chevy W-550 Cab over truck, 17,950# GVW with 5360# front axle, 12,980# rear axle, 5.1 liter 190 HP
     Isuzu motor with automatic transmission, 132.5” wheelbase, engine shutdown system,
     air conditioning.
   Two (2) 60 gallon ASME stainless steel paint tanks
   One (1) 750# ASME carbon steel paint tanks
   One (1) 7 gallon SAME stainless steel cleaner tank
   Ingersoll Rand 130 cfm diesel rotary screw compressor
   Two (2) KML – 1015 paint guns and two (2) Graco bead guns with adjustable deflectors
     mounted on steerable 36” center line carriage
   One (1) KML-1015 paint gun and one (1) Graco bead gun with adjustable deflector mounted
     on steerable 36” center line carriage
   One (1) stainless steel 1 ˝” loading pump
   Two (2) strobe lights mounted on front corners of bed above cab
   One (1) front pointer with hydraulic life from drivers’ position
   Automatic skipline controller
   David Clark U3800 voice activated intercom system
   Rear operator’s air-ride seats (2)
   Easy-Read wire and hose schematics for simple troubleshooting




Options:

   Paint and bead stencil gun
   Gallon meter kit (3)
   Camera pointer system
   Remote digital speed indicator
   Extra strobe lights
   Two (2) 110 gallon paint tote
   Loading pump
   Cone platform
   Arrow board with automatic lift
   Shade roof over operator
   Air ride seats for rear operators
   Conspicuous tape

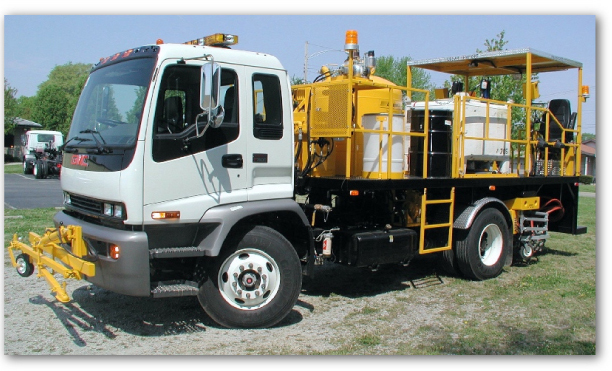

Airless Striper




Features:

   Superior heavy-duty construction makes for a long service life.
   Clean and simple design ensures ease of operation and maintenance.
   High Quality Components minimize overall maintenance.
   Large inventory of replacement parts stocked at our factor and we offer same day shipment.
   Our outstanding customer service professionals backed by our knowledgeable technical
     support staff ensures that all your needs are met and your questions answered after the sale.
   Load-sense hydraulic system, designed for variable RPM and variable output.

Specifications:

Chevy T Series Cab Over Truck 25,950 GVW with 12,000# front axle, 19,000# rear axle, 260hp Duramax motor, 3000 RDS Allison
World Transmission, 154” wheelbase, air-conditioning, am/fm cassette player.

  32 gpm Load-sense hydraulic system powers this truck. There is no auxiliary motor
  One (1) 2000 # ASME carbon steel bead tank
  Two (2) 150 gallon totes
  Hydraulically driven 16 cfm compressor
  Two (2) Graco airless paint guns and two (2) Graco bead guns with adjustable diffusers
    installed on centerline carriage.
  One (1) Graco airless paint gun and one (1) Graco bead gun with adjustable diffusers installed
    on edge line carriage.
  Handgun valves for white and yellow paint
  Four (4) strobe lights. Two mounted on rear corners of bed and two mounted on the front
    corners of the bed.
  Vacuum bead loading system with bag splitter
  One front mounted pointer with hydraulic lift from driver’s position.
  Electronic control box
  David Clarke U-3800 intercom system with Two (2) headsets.
  Two toolboxes mounted under the operator’s chairs



Options:

   Paint heating system with Webasto furnace, two (2) 8” x 36” stainless heat exchangers, and
     electronic temperature control system
   Arrow board 4’x 8’ with automatic lift
   Vacuum bead loading system with bag splitter
   Cone platform
   Shade roof over operator
   Dusters for each gun
   Extra paint and bead guns on either carriage
   Dual steering
   Low Speed Cruise Control
   Camera Pointer System
   Paint and Bead Monitoring Systems
   Night Light Package
   Extra Strobe Light Package

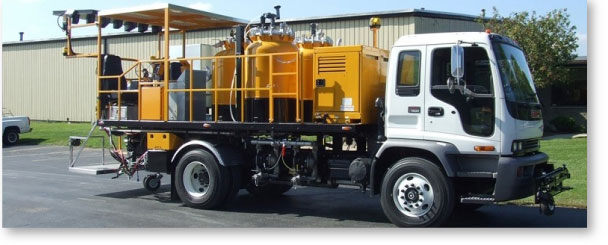

Airspray Striper





Features:

   Superior heavy-duty construction makes for a long service life.
   Clean and simple design ensures ease of operation and maintenance.
   High Quality Components minimize overall maintenance.
   Large inventory of replacement parts stocked at our factor and we offer same day shipment.
   Our outstanding customer service professionals backed by our knowledgeable technical
     support staff ensures that all your needs are met and your questions answered after the sale.

Specifications:

Chevy T SeriesCab Over Truck. 25,950 GVW with 12,000# front axle, 19,000# rear axle, 260hp Duramax motor, 3000 RDS Allison
World Transmission, 154” wheelbase, air-conditioning, am/fm cassette player.

  Two (2) 125 gallon ASME stainless steel paint tanks with agitators and 4” fill ports
  One (1) 1750 # ASME carbon steel bead tank
  30 gallon stainless steel cleaner tank
  Ingersoll Rand 185 cfm rotary screw compressor with air dryer
  Two (2) KML-1015 paint guns and two (2) Graco bead guns with adjustable diffusers installed
    on centerline carriage. Blowers installed for each gun.
  One (1) KML-1015 gun and one (1) Graco bead gun with adjustable diffusers installed on edge
    line carriage. Blower installed for edge line gun.
  Handgun valves for white and yellow paint
  One loading pump 2” stainless steel
  Four (4) strobe lights. Two mounted on rear corners of bed and two mounted on the front
    corners of the bed.
  One front mounted pointer with hydraulic lift from driver’s position.
  Electronic control box
  David Clarke U-3800 intercom system with Two (2) headsets.
  Two toolboxes mounted under the operator’s chairs


Options:

  Paint heating system with Webasto furnace, two (2) 8” x 36” stainless heat exchangers, and
     electronic temperature control system
  Arrow board 4’x 8’ with automatic lift
  Dual steering and controls in cab
  Additional 2” loading pump
  Vacuum bead loading system with bag splitter
  Dusters for each gun
  Cone platform
  Shade roof over operator
  Extra paint and bead guns one either carriage
  Camera Pointer System
  Low Speed Cruise Control




Airless  Striper




Features:

   Superior heavy-duty construction makes for a long service life.
   Clean and simple design ensures ease of operation and maintenance.
   High Quality Components minimize overall maintenance.
   Large inventory of replacement parts stocked at our factor and we offer same day shipment.
   Our outstanding customer service professionals backed by our knowledgeable technical
     support staff ensures that all your needs are met and your questions answered after the sale.

Specifications:

Chevy T-Series 33,000 GVW.25,950 GVW with 12,000# front axle, 19,000# rear axle, 260hp Duramax motor, 3000 RDS Allison
World Transmission, 154” wheelbase, air-conditioning, am/fm cassette player.

  Two (2) 32 gpm Load-sense hydraulic system powers this truck. There is no auxiliary motor
  Up to 6000 pound bead capacity
  Up to 1000 gallon paint capacity.
  Two (2) Graco airless paint guns and two (2) Graco bead guns with adjustable diffusers installed on centerline carriage.
  One (1) Graco airless paint gun and one (1) Graco bead gun with adjustable diffusers installed on edge line carriage.
  Handgun valves for white and yellow paint
  Four (4) strobe lights. Two mounted on rear corners of bed and two mounted on the front corners of the bed.
  Vacuum bead loading system with bag splitter
  One front mounted pointer with hydraulic lift from driver’s position.
  Electronic control box
  David Clarke U-3800 intercom system with Two (2) headsets.
  Two toolboxes mounted under the operator’s air ride cushion seats



Options:

   Paint heating system with Webasto furnace, two (2) 8” x 36” stainless heat exchangers, and
    electronic temperature control system
   Arrow board 4’x 8’ with automatic lift
   Vacuum bead loading system with bag splitter
   Cone platform
   Shade roof over operator
   Dusters for each gun
   Extra paint and bead guns one either carriage
   Hydraulically driven 50 cfm compressor
   Cone platform
   Dual steering
   Rear operators cab (upgrade to heavier front and rear axle)
   Camera Pointer System
   Low Speed Cruise Control ,0

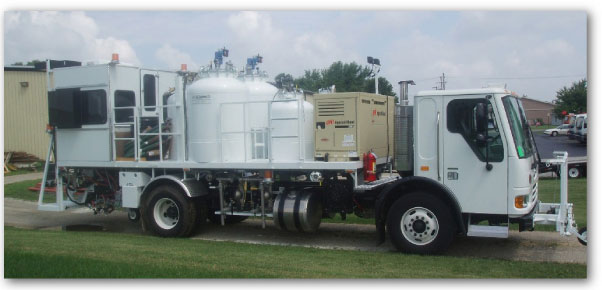

Airspray Striper




Features:

   Superior heavy-duty construction makes for a long service life.
   Clean and simple design ensures ease of operation and maintenance.
   High Quality Components minimize overall maintenance.
   Large inventory of replacement parts stocked at our factor and we offer same day shipment.
   Our outstanding customer service professionals backed by our knowledgeable technical
     support staff ensures that all your needs are met and your questions answered after the sale.

Specifications:

Chevy T-Series 33,000 GVW. This truck has a Duramax 300 hp motor, 12,000# front axle, 21,000# rear axle, Allison RDS3000 six
speed automatic transmission, 130 amp alternator, 2 x 50 gallon fuel tanks, air conditioning,white.

  Two (2) 350 gallon ASME stainless steel paint tanks with agitators
  One (1) 4200 # ASME carbon steel bead tank
  Ingersoll Rand 250 cfm diesel rotary screw compressor
  Three (3) paint guns on center line carriage. Paint guns will be KML-1015 non-bleeder with
    flushable tips and insulated hoses. Three (3)   Graco bead guns with adjustable diffusers.
  One (1) paint gun on edge line carriage. Paint gun will be KML-1015 non-bleeder with
    flushable tip and insulated hose. One (1) Graco bead gun with adjustable diffuser.
  Handgun valves for white and yellow paint
  Two stainless steel 2” loading pumps
  Four (4) strobe lights. One mounted on each corner of the bed.
  One front mounted pointer with hydraulic lift from driver’s position.
  Automatic skip-line controller
  David Clarke U-3800 intercom system with three (3) headsets.
  Vacuum fill system with bag splitter for glass beads

Options:

  Arrow board 4’ x 8’ 15 light w/auto lift
  Paint heating system with four (4) water jacketed paint hoses
  Dual steering
  Shade roof over operators
  LED Strobe lights
  Light bar on cab
  Laser pointer
  Camera guidance system







Features:

   Superior heavy-duty construction makes for a long service life.
   Clean and simple design ensures ease of operation and maintenance.
   High Quality Components minimize overall maintenance.
   Large inventory of replacement parts stocked at our factor and we offer same day shipment.
   Our outstanding customer service professionals backed by our knowledgeable technical
     support staff ensures that all your needs are met and your questions answered after the sale.
   36" line in one pass.

Specifications:

Chevy T-Series 33,000 GVW. This truck has a Duramax 300 hp motor, 12,000# front axle, 21,000# rear axle, Allison RDS3000 six
speed automatic transmission, 130 amp alternator, 50 gallon fuel tank, air conditioning, white.

  Two (2) 32 gpm Load-sense hydraulic system powers this truck. There is no auxiliary motor
  One (1) 3300 # ASME carbon steel bead tank
  Anchoring system for two (2) 275 gallon totes
  Six (6) Graco airless paint guns and six (6) Graco bead guns with adjustable diffusers installed
    on centerline carriage.
  One (1) Graco airless paint gun and one (1) Graco bead gun with adjustable diffusers installed
    on edge line carriage.
  Four (4) strobe lights. Two mounted on rear corners of bed and two mounted on the front
    corners of the bed.
  Vacuum bead loading system with bag splitter
  One front mounted pointer with hydraulic lift from driver’s position.
  Electronic control box
  David Clarke U-3800 intercom system with Two (2) headsets.
  Two toolboxes mounted under the operator’s air ride cushion seats
   36 inch wide line in one pass
   Load-sense hydraulic system, designed for variable RPM and variable output.
   Plus, same features from RR truck, added above.



Options:

   Paint heating system with Webasto furnace, two (2) 8” x 36” stainless heat exchangers, and
    electronic temperature control system
   Arrow board 4’x 8’ with automatic lift
   Cone platform
   Shade roof over operator
   Dusters for each gun
   Dual steering
   Rear operators cab (upgrade to heavier front and rear axle)
   Camera Pointer System
   Low Speed Cruise Control
