HRL-1
- Heavy duty frame hand-made for long life, designed to take the weight off of the operator and to ensure years of straight tracking
- Honda 5.5 HP motor, with oil alert
- 7 Gallon pressure vessel (also available in 12 gallon, or in stainless steel)
- Extra wide rear tires, with a spring-loaded rear axle
- Pressure cleaning system
- All brass gauges, with glass faces to ease removal of spilled paint
- All American-made ball valves and plumbing (also available in stainless steel)
- Heavy duty trigger mounted on handlebar
- Line guns with either a diaphragm gun (best for oil-based paints) or a non-bleeder gun (best for latex paints)
- Double gun option available with a non-bleeder gun - comes with 16 cfm compressor
- Parts List
- Parking lots
- Sealcoating
- Stenciling
- Air curtains for sharper edged lines
- Double 5 or 7 gallon tanks
- Glass bead dispensers available, in either 4" or 6", single or double
- Handgun with 15' hose (extensions available)
- Curb painting attachment
- Handbrake
- Belt guard

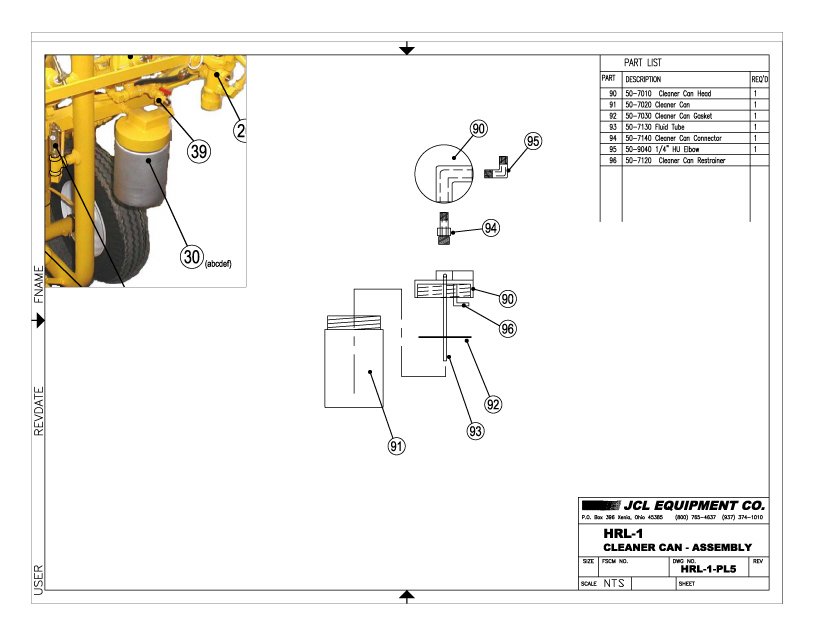

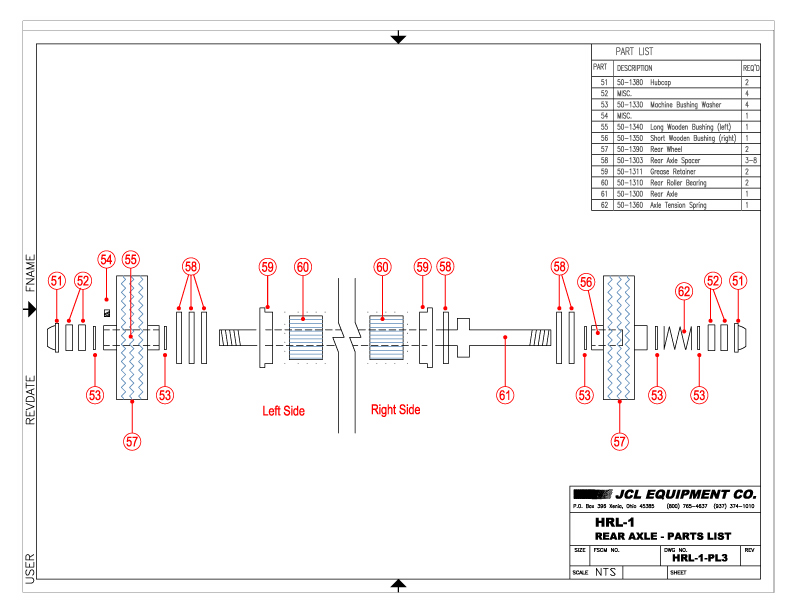

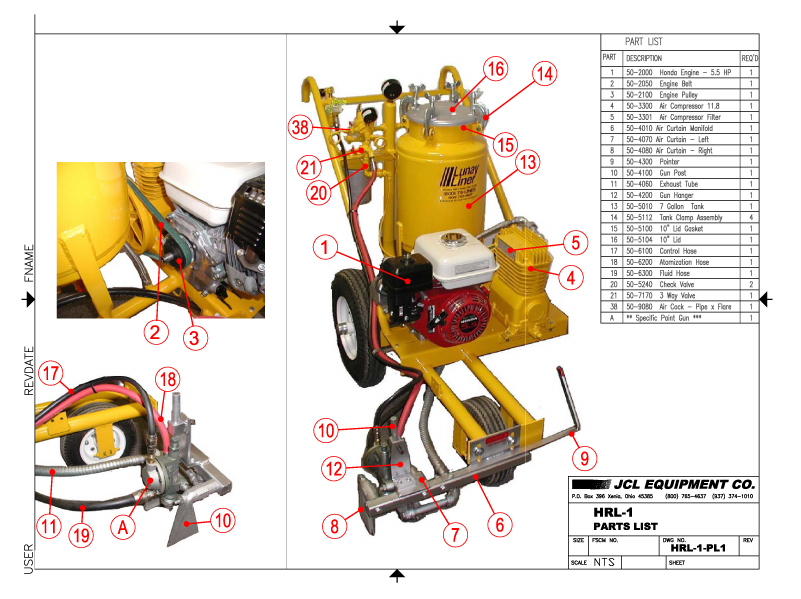

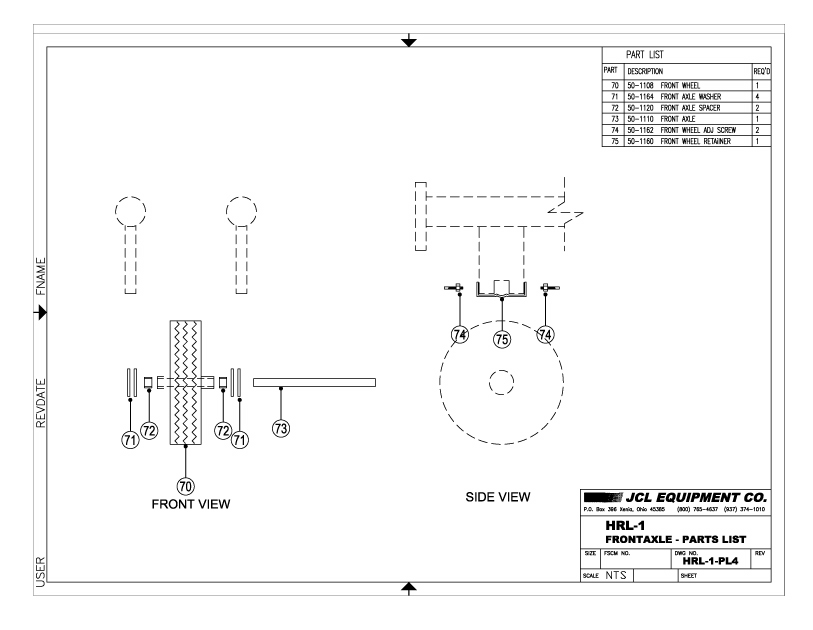

Click on the following links to view schematic drawings:
